Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | Suzhou,China |
| Nazwa handlowa: | PN |
| Orzecznictwo: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | SINCE-GAS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Cena: | Negotiate |
| Packaging Details: | Normal exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets/year |
| Capacity: | 5-5000 Nm3/h | Purity: | 95%-99.99% |
|---|---|---|---|
| Operate pressure: | 0.1-0.8 Mpa | Dew point: | -40 ℃ |
| Condition: | New | State: | Fully automatic |
| High Light: | Nitrogen Membrane Generators,Nitrogen Membrane Unit |
||
Durable Long Life Membrane Nitrogen Generator Nitrogen Gas Generation
Description:
(1) Nitrogen Generator
1.1) High purity
1.2) Excellent energy-saving
1.3) Smoothly running,long-life
1.4) Automatic operating
1.5) Certificate:ISO9001:2008
Air is composed of 78% Nitrogen and 21% Oxygen. PSA Nitrogen generation technology works on the
principle of air separation by adsorbing Oxygen and separating Nitrogen.

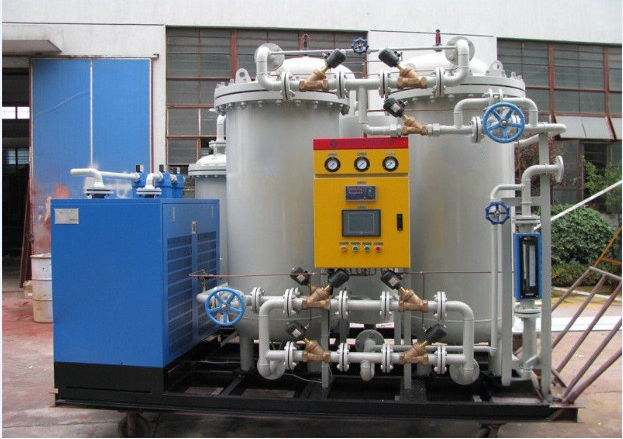

Pressure Swing Adsorption (PSA Nitrogen) process comprises of 2 vessels filled with Carbon Molecular Sieves
(CMS). (see image below for detail of vessels).
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the
quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.
When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,
the N2 gas is absorbed and O2 is obtained by separation.
The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get
into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .
When one tower produces N2, another tower release the N2 by reducing the pressure to get the
renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to
output N2 continuously.
Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Technical characteristics:
More reliable:
* Standardized air separation systems based on proven state of the art technologies in history of many
years application in fields.
* Simplified engineering design idea with much less moving parts, guarantees maximum reliability and
minimal maintenance
More economical:
* More advanced and more economical air separation modules.
* REFLUX composition control system reduces air consumption capacity, saves energy cost.
* Patented Energy Efficiency System (EES) enables our systems to produce product gases based on
actual demand.
More convenient:
* Diversification monitoring and control system enables parameters of capacity, purity, and pressure of
product gases online display on panel screen, gives running problem alarm, and reminds of maintenance.
* Turn-key solution and pre-commissioned.
* Skid mounted design, easy installation.
Application:
Oil tanker ship
Chemical ship
LNG ship
Oil&Gas extraction
Oil&Gas storage project
During the last 10 years,about 98% old customers firmly choose SINCE
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom
company who got ,TS (Manufacture License of special equipment)
CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen
generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
