Place of Origin: | Suzhou |
Nazwa handlowa: | SINCE-GAS |
Orzecznictwo: | CE, ASME, DNV,BV,,ABS,CCS |
Model Number: | PN-NP-C |
Minimum Order Quantity: | 1 set |
---|---|
Cena: | negotiable |
Packaging Details: | Standard exporting packing |
Delivery Time: | within 2-3 months |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 70-80 sets / month |
Czystość: | 95%-99,9995% | Materiał: | Stal węglowa, stal nierdzewna |
---|---|---|---|
Certyfikaty: | CE, BV, ABS, CCS, DNV, LR, UL, GOST | Kod projektowy: | ASME VIII DZI 3 |
Ciśnienie robocze: | 8-10 barów | Charakterystyka: | Oszczędzanie energii |
High Light: | sa zakład azotowy,generator gazu azotowego PSA,generator azotu PSA do samochodów |

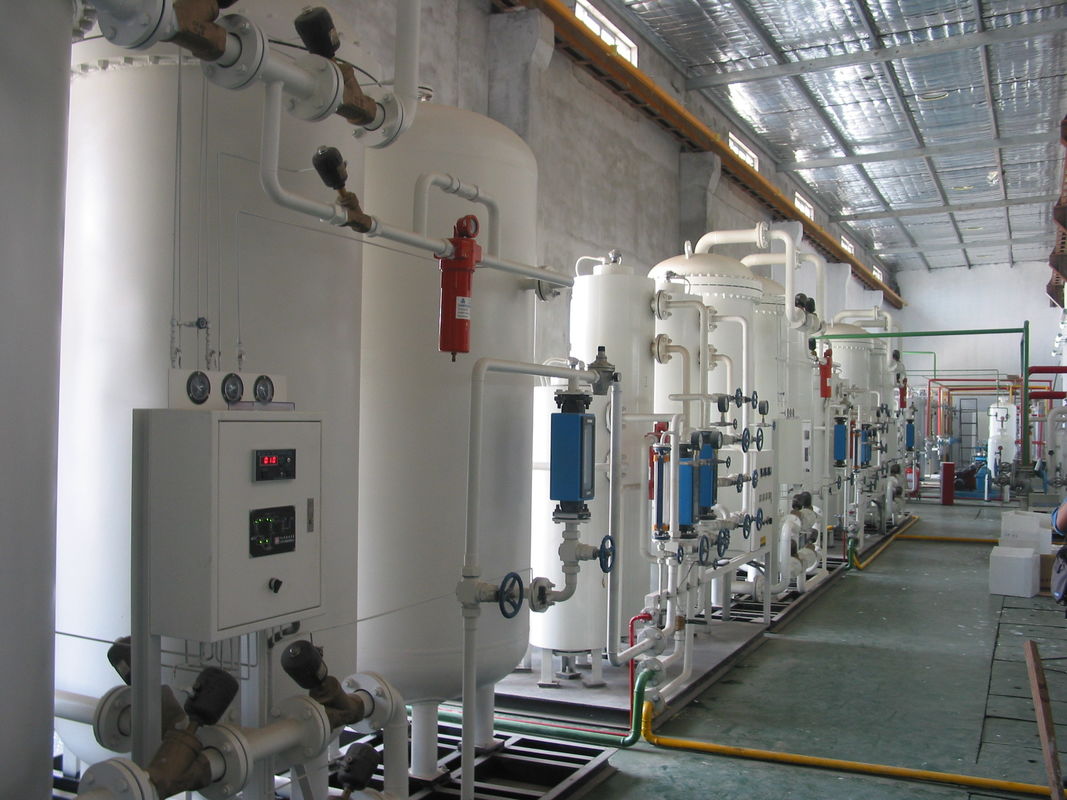

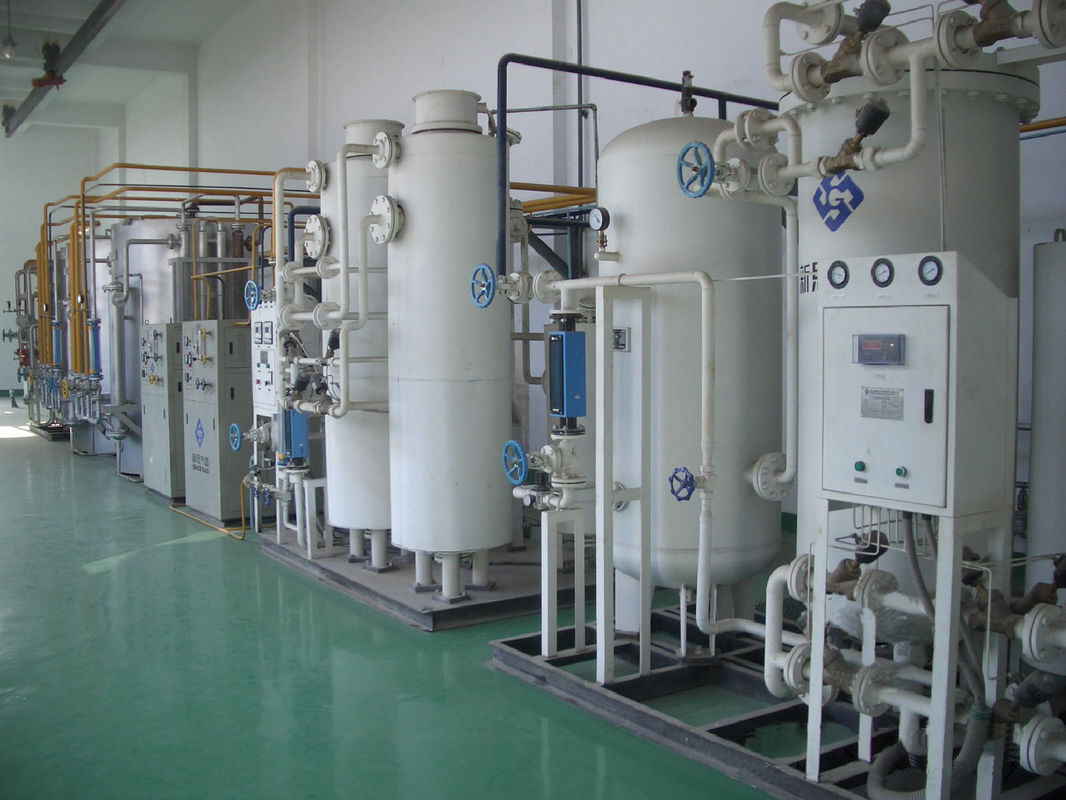

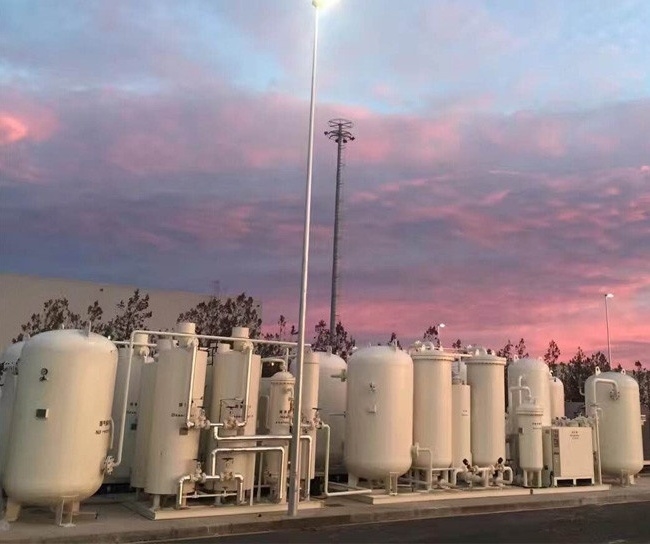

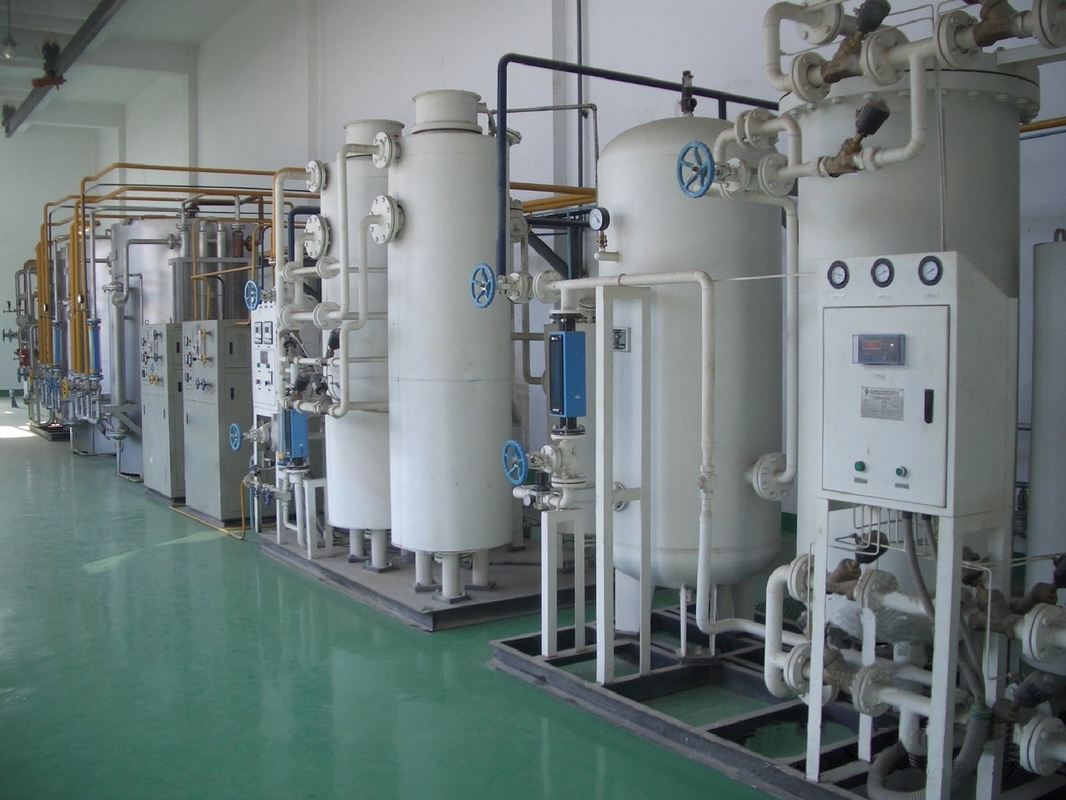

Energy-saving ASME portable nitrogen generator for automobile
Description :
1. Energy -saving
2. Saving -cost
3. Portable
4. Fully automatic
Using clean air (after filtering) passed CMS to separate N2 from O2, CO2, CO , O2 etc, the O2, CO2, CO and other molecules are flushed from the CMS by depressuring the sieve bed and the vessel is ready for new air to be introduced. Via different pressure for regeneration working, to realize two towers continously working without stop .
SINCE GAS Specifications :
No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 | 2100*1800*2200 |
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 | 2200*1800*2200 |
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 | 2400*1900*2200 |
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 | 2500*2100*2500 |
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
37 | PN-80-49 | 80 | 99.99% | 0.5 | |
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
... | ... | ... | ... | ... | ... |
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
Technical features :
Principle: passage of compressed air through a bed of carbon molecular sieve (CMS) using presure swing adsorption technology, the most reliable on the market
· N2 flow: 5-5000 Nm3/h
· O2 purity: 1% to 10 ppm
· On-line monitoring instrument
· Digital hours counter Audible and visual maintenance indicator
· Economy mode option: via pressure to enables the compressor shut & start-up when nitrogen supply is not required
Why SINCE-GAS?
-COST SAVINGS
You can save Nitrogen costs by generating your our nitrogen on-site, produce your own nitrogen , payback only couple of months .
Save on:
Transporation Costs
Bulk Liquid Evaporation Loss
Renting costs
Handling and Purchasing Costs
- Convenient
Produce your own nitrogen for production line , demand, to avoid transporation fault cause stop production line problems.
