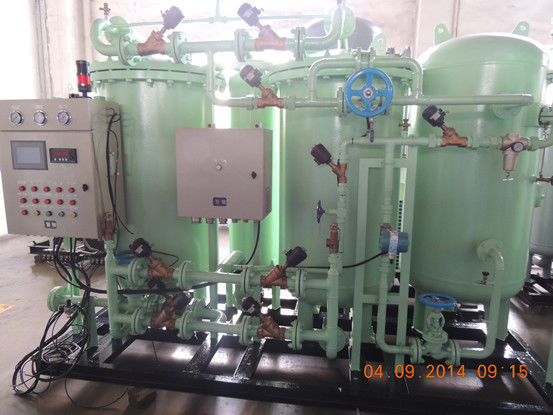

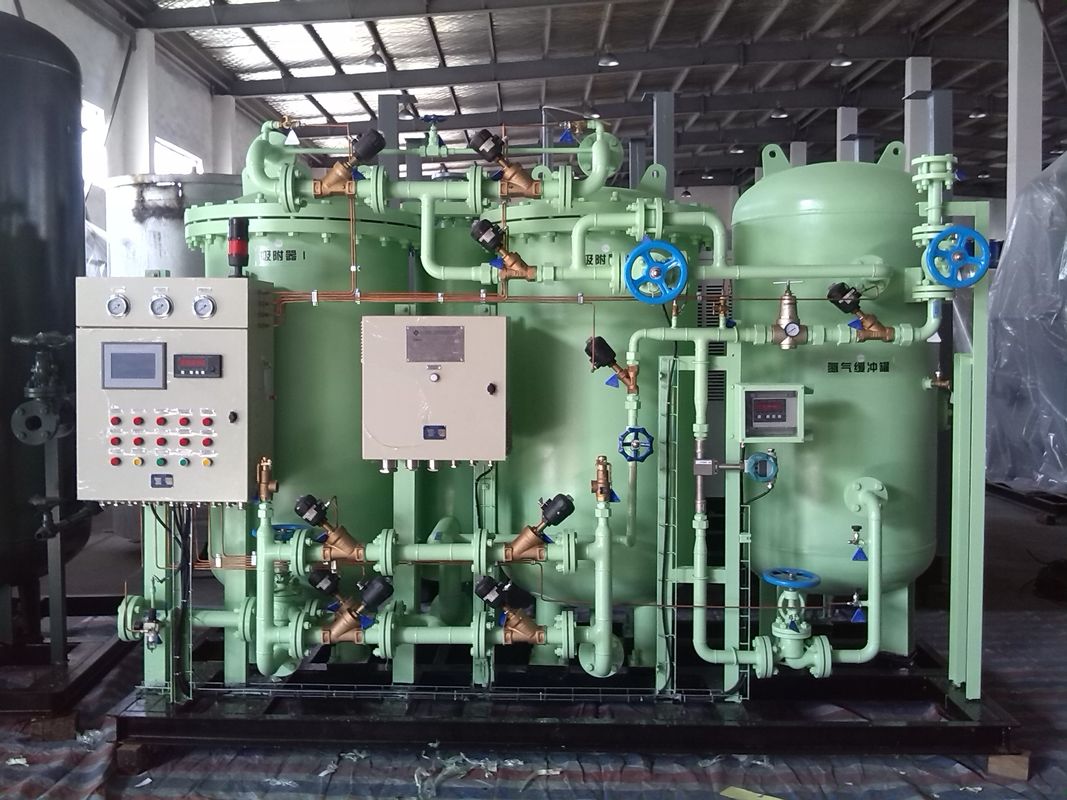

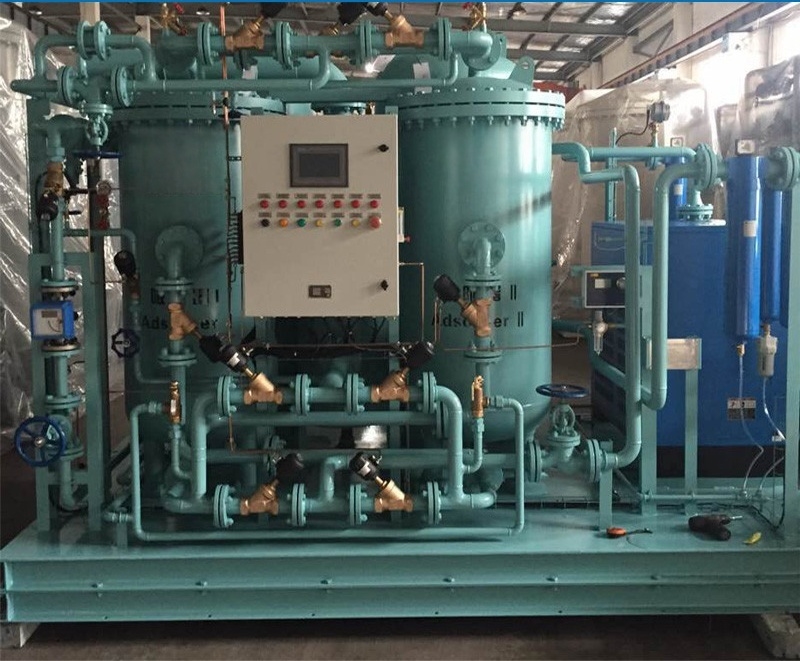

CE Certified PSA Nitrogen Generator 95-99.9995% Purity

The CE verified PN-NP-C High Purity Nitrogen Generator delivers exceptional performance with purity levels ranging from 95% to 99.9995%.

• Purity: 95%-99.9995%
• Energy-saving design
• 20+ years working life
• Fully automatic operation

Using PSA technology, the nitrogen generator isolates nitrogen molecules from other molecules in compressed air (water, oxygen, CO2, etc). The carbon molecular sieve (CMS) adsorbent retains all other molecules while allowing nitrogen to pass through. The system features two towers - one working while the other regenerates by releasing CO2 and oxygen, with a switching cycle of approximately 58 seconds.

• Principle: Pressure swing adsorption (PSA) technology using carbon molecular sieve (CMS)
• N2 flow: 5-5000 Nm3/h
• O2 purity: 1% to 10 ppm
• On-line monitoring instrument
• Digital hours counter with audible and visual maintenance indicator
• Economy mode option: Compressor shutdown when nitrogen supply is not required

Note: For more information, please contact Since Gas System Co., Ltd or send us an email directly.

• Metal processing and laser cutting
• Pharmaceuticals
• Electronics
• Food and beverage processing and storage
