Miejsce pochodzenia: | Suzhou,China |
Nazwa handlowa: | SINCE-GAS |
Orzecznictwo: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
Numer modelu: | PN-100-595 |
Minimalne zamówienie: | 1 set |
---|---|
Cena: | Negotiate |
Szczegóły pakowania: | Normal exporting package |
Czas dostawy: | 2 months after received down payment |
Zasady płatności: | L/C, T/T, Western Union, MoneyGram |
Możliwość Supply: | 1000 sets/year |
Czystość: | 99,9995% | Pojemność: | 100 Nm3/godz |
---|---|---|---|
Materiał: | Stal węglowa | Metoda operacji: | całkowicie automatyczny |
Podanie: | cięcie laserowe | Ciśnienie robocze: | 22 bary |
High Light: | sa zakład azotowy,system wytwarzania azotu psa,wysokociśnieniowy generator azotu 100 Nm3/h |

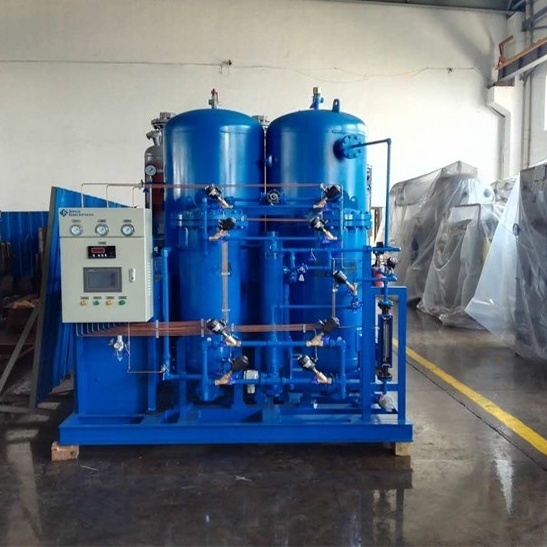

Heat treatment high purity with high pressure laser cutting nitrogen generator
Description:
(1) Nitrogen Generator
1.1) High purity
1.2) Excellent energy-saving
1.3) Smoothly running,long-life
1.4) Automatic operating
1.5) Certificate:ISO9001:2008
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.
When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,
the N2 gas is absorbed and O2 is obtained by separation.
The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal . When one tower produces N2, another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to output N2 continuously.
Specifications:
No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
1 |
PN-3-39 |
3 |
99.9% |
|
|
5 |
PN-5-49 |
5 |
99.99% |
|
|
9 |
PN-10-49 |
10 |
99.99% |
|
|
13 |
PN-15-49 |
15 |
99.99% |
0.5 | 2100*1800*2200 |
17 |
PN-20-49 |
20 |
99.99% |
0.5 | 2200*1800*2200 |
21 |
PN-30-49 |
30 |
99.99% |
0.5 | 2400*1900*2200 |
25 |
PN-40-49 |
40 |
99.99% |
0.5 | 2500*2100*2500 |
29 |
PN-50-49 |
50 |
99.99% |
|
|
33 |
PN-60-49 |
60 |
99.99% |
|
|
37 | PN-80-49 | 80 | 99.99% | 0.5 | |
38 |
PN-120-39 |
120 |
99.9% |
|
|
41 |
PN-100-49 |
100 |
99.99% |
|
|
... | ... | ... | ... | ... | ... |
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
Technical characteristics
1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out , it can not cause of molecular sieve pulverization phenomenon. equipped with the limit settlement alarm system,when it reach the floor level of journey,the equipment will sound and light alarm by itself.
3. Configured DCS remote control system interface,it can monitor the system operate condition through the computer.
4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
6. Reasonable structure design make the transportation, sling and installation very convenient.
7. Selecting the safe and reliable control components, so the equipment can run stable and reliable,it also has various fault alarm.
8.It operates easily, runs stably, and has a high degree of automation, can realize no one operates.
Application: Heat treatment, laser cutting machine .
