Miejsce pochodzenia: | Suzhou, China |
Nazwa handlowa: | SINCE |
Orzecznictwo: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
Numer modelu: | PN |
Minimalne zamówienie: | 1 set |
---|---|
Cena: | Negotiate |
Szczegóły pakowania: | Exported wooden case |
Czas dostawy: | 2 months after received down payment |
Zasady płatności: | L/C, T/T, Western Union, MoneyGram |
Możliwość Supply: | 1000 sets /per year |
Materiał: | Stal węglowa/stal nierdzewna | Certyfikaty: | BV, CCS, ISO, TS |
---|---|---|---|
Pojemność: | 5-5000 Nm3/godz | Czystość: | 95%-99,9995% |
Punkt rosy: | -70 ℃ | Moc operacyjna: | 1 KW |
Podanie: | Przemysł włókien chemicznych | ||
High Light: | zakład azotowy sa,system generowania azotu psa,generator azotu o wysokiej czystości dla przemysłu chemicznego |

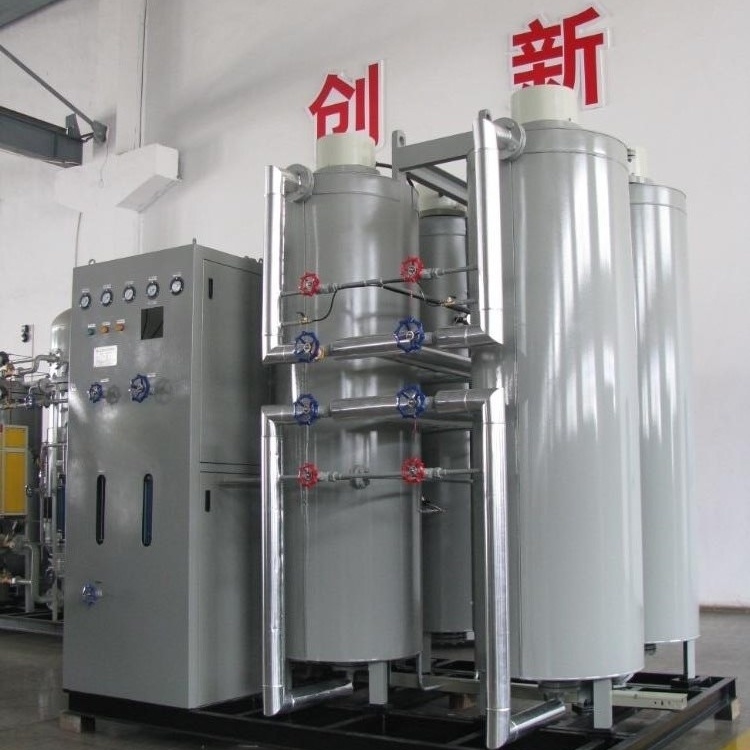

Fiber Chemical Industry High Purity Nitrogen Generator / Nitrogen Generation Unit
Chemical Fiber - Chemical industry applied high purity Nitrogen gas equipment/system
PSA nitrogen generator for Chemical Fiber Industry:
Features:
Support: Very easy to install, operate and require very little maintenance and service. Specialist
support from planning, installation and operation of your project.
Convenience: Easy to install and maintain with an unlimited supply of nitrogen. The generator's PLC
operates the generator automatically, starting and stopping the nitrogen production in direct response
to demand in the down
stream distribution system. Only produce the gas you need, when and where you need in exact quantity
and quality needed.
Flexibility: Unmatched System Lay-Out Flexibility. No matter your need or application we can provide
state of art design to meet your requirements.
Fully Automatic & Remote control: Fully automated generator;Unattended Operation; Remote Control
Access; Production begins when demand downstream is sensed. The system will go into standby
mode when oxygen is not required.
Reliability: We will produce the required nitrogen 24x7x365 days for years when called for. High
reliability through fewer moving parts and high quality components. You will get controlled flow and
uninterrupted gas.
How it works ?PSA stands for pressure swing adsorption which means air becomes source gas, nitrogen & oxygen
molecular will be adsorb by preferential adsorption. By using pressurized adsorption and stepdown
desorption, so N2 and O2 are separated discharge rich oxygen gas, ensure produce N2. The whole
line system is consisted of air compressor,air buffer tank, air treatment system, PSA generator and
N2 buffer tank. The vapor, dust and oil in compressed air must be removed through pretreatment,
then into two columns of PSA. CMS absorbs O2 molecular, but hardlyto adsorb N2 molecular.
Therefore, most N2 molecular could be collected and utilized after into N2 buffer tank.
There are totally two columns in PSA generator, it alternately switch. When one column is saturated,
another one is regenerated, two columns work alternately ensure nitrogen generator produces N2
continuously. Switch operation is made by PLC. Magnetic valve is connected with drive air source
and pneumatic valves. Signal delivered by designed PLC, to control magnetic reversal, to move
pneumatic valves. Two columns work alternately, unattended operation.
