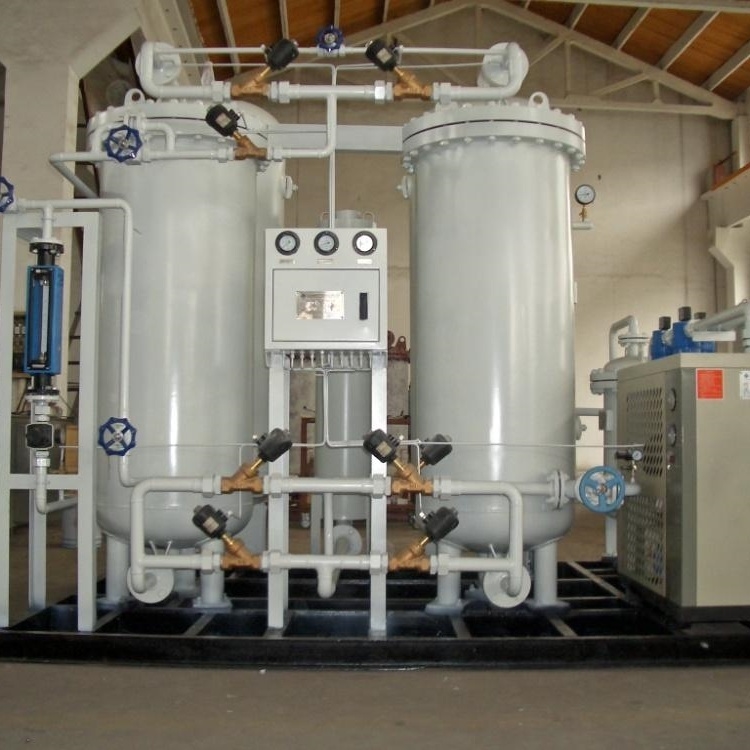

Fully Automatic PSA Nitrogen Generator 5-5000 Nm3/h 99.9995% Purity

Fully Automatic PSA Nitrogen Generator 5-5000 Nm3/h 99.9995% Purity

sa zakład azotowy

generator gazu azotowego PSA

w pełni automatyczny generator azotu PSA

Place of Origin:

Suzhou, China

Nazwa handlowa:

SINCE

Orzecznictwo:

CE,ABS,CCS,BV,DNV,ASME,GOST,

Model Number:

PN

Skontaktuj się z nami
Poproś o wycenę
Szczegóły produktu
Material:
Carbon steel/Stainless steel
Certificates:
BV,,CCS,ISO,TS
Capaicty:
5-5000 Nm3/h
Purity:
95%-99.9995%
Dew point:
-70 ℃
Operate power:
1 KW
Application:
Aluminum strip,sheets,bar industry
Podkreślić:

sa zakład azotowy

,

generator gazu azotowego PSA

,

w pełni automatyczny generator azotu PSA

Warunki płatności i wysyłki
Minimum Order Quantity
1 set
Cena
Negotiate
Packaging Details
Exported wooden case
Delivery Time
2 months after received down payment
Payment Terms
L/C,T/T,Western Union,MoneyGram
Supply Ability
1000 sets /per year
Opis produktu
Fully Automatic PSA Nitrogen Generator Liquid Nitrogen Production 99.9995%
Product Specifications
Attribute Value
Material Carbon steel/Stainless steel
Certificates BV, CCS, ISO, TS
Capacity 5-5000 Nm3/h
Purity 95%-99.9995%
Dew point -70 ℃
Operate power 1 KW
Application Aluminum strip, sheets, bar industry
PSA Nitrogen Generator for Aluminum Industry
  • Purity: 95%-99.9995%
  • Capacity: 5~3000 Nm3/h
  • Outlet Pressure: 0.1-0.7Mpa (Adjustable)
  • Low compressed air consumption
  • Durable components
Working Principle

PSA nitrogen making uses air as its raw material. By utilizing the selective absorption character of carbon molecular sieve, this process separates nitrogen and oxygen based on the principle that pressurization gives absorption and depressurization gives desorption.

Technical Characteristics
  • Incorporates German technique for nitrogen generation and molecular sieve filling process, maximizing recycling rate and minimizing pulverization rate for a machine life cycle over 10 years
  • Features adjustable and detachable absorption tower that maintains molecular sieve in stable, static condition, eliminating mechanical wear
  • Incorporates vortex emission discharge for efficient gas replenishment, reducing consumption and extending air compressor standby duration
  • Optional fully automatic operation with remote control system for 24-hour monitoring of flow rate, purity, pressure, and automatic discharge of nonconforming nitrogen
Technical Indexes
  • Nitrogen Output: 5~3000Nm³/h
  • Nitrogen Purity: ≥ 99.9995%
  • Oxygen Content: ≤ 5 ppm
  • Carbon Dioxide Content: ≤ 1 ppm
  • Dew Point: ≤ -70ºC
Model Specifications
No Model Capacity (Nm3/h) Purity Power (KW) Overall size (mm)
1 PN-3-39 3 99.9% 0.5 1800*1400*1500
2 PN-5-29 5 99.5% 0.5 1800*1400*1500
3 PN-5-295 5 99% 0.5 1800*1400*1500
4 PN-8-295 8 95% 0.5 1800*1400*1500
5 PN-5-49 5 99.99% 0.5 1800*1400*1800
6 PN-8-39 8 99.9% 0.5 1800*1400*1800
7 PN-12-295 12 99.5% 0.5 1800*1400*1800
8 PN-15-29 15 99% 0.5 1800*1400*1800
Fully Automatic PSA Nitrogen Generator 5-5000 Nm3/h 99.9995% Purity 0
Note: For more information please contact Since Gas System Co., Ltd or send us an email directly.
