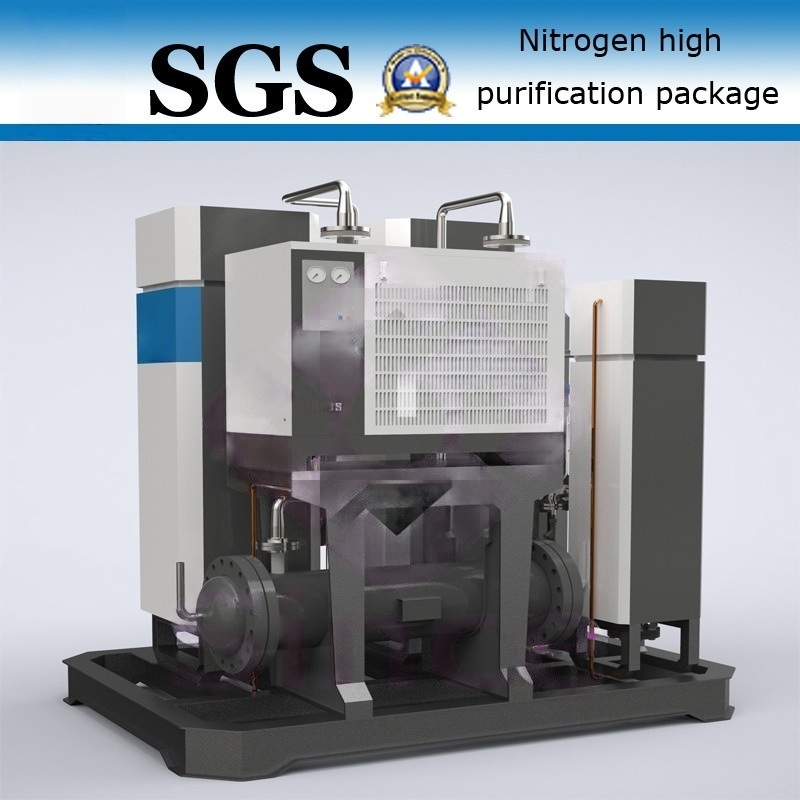

High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace

High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace

  • High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace
High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace
Szczegóły Produktu:
Place of Origin: Suzhou,China
Nazwa handlowa: SINCE-GAS
Orzecznictwo: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: NP-C
Zapłata:
Minimum Order Quantity: 1 set
Cena: Negotiate
Packaging Details: Normal exported wooden case
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/year
Kontakt
Szczegółowy opis produktu
Pojemność: 100-5000Nm3/godz Czystość: >99,9995%
Punkt rosy: -70℃ Aplikacja: Blacha/stal do walcowania na zimno, linia do cynkowania, produkcja miedzi
High Light:

Oczyszczanie gazu ziemnego

,

system oczyszczania gazu

,

generator PSA z piecem dzwonowym



High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace





Description:



No

Item

Specs

Notes

1

Purity

>99.9995%



2

Pressure

≤5bar

Adjustable

3

Dew point

≤-70degree

Even lower

4

Oxygen content

≤3ppm



5

Capacity

5-5000 Nm3/h



6

Producing method

Plus carbon

Via Carbon remove O2



Principle:



O2+C——CO2

Taking oxygen &carbon can make CO2 principle under the catalyzator function, offering nitrogen put

through oxygen eliminate device which full of high efficiency carbon deoxidant, eliminating oxygen etc

impurity, after absorb dryer Carbon to get high purity nitrogen. Carbon deoxidant is the key part of

Eliminating oxygen, while palladium etc noble metal is the key in catalyzator,make sure we can get

proper oxygen content at the certain temperature.



Characteristics:



1) Convenient and efficient to generate nitrogen: Advance technology, special gas flow distributor

to make the gas distribute more well distributed, high efficient use of CMS, qualified nitrogen can be

offered within 15 to 30 minutes.
2) Convenient use: The equipment structure is compact, low space coverage and no need of

construction investment, low investment, the only thing to do is to connect power to generate nitrogen.
3) More economical than other ways of nitrogen supply: PSA technology is a simple way to generate

nitrogen. It takes air as source, and the only energy consumption is only electricity consumption. So it

has the advantages of low operation cost, low energy consumption and high efficiency.
4) Electromechanical integrated design to realize automatic operation: Imported PLC control the full

automation, the flow rate, pressure and purity of nitrogen can be regulated and displayed consecutively;

No personnel is needed to be on duty.



Technical Index :



Normal Nitrogen

Pressure: 5-8bar

Dew point(ASM):≤-40degree

Oxygen content :≤1%

Capacity :5~5000Nm3/h



High Purity PSA Nitrogen Generator Equipped With Bell Type Furnace 0



Application:



1. Metallurgy: For anneal protection, agglomeration protection, furnace washing and blowing ,etc.

Used in fields such as metal heating treatment, powder metallurgy, magnetic material,copper process,

metallic mesh, galvanized wire, semiconductor, etc.

2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement,

gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber,

plastic, tyre, polyurethane, biological technology, intermediate, etc.

3.Electronic industry: For encapsulation, agglomeration, anneal, deoxygenation, storage of electronic

products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic

porcelain, electronic copper tape, battery, electronic alloy material, etc.
